Semi-permanent warehouses...

Our Alu Series Industrial structure is a two slopes aluminum structure with steel junction parts. Thanks to the large range of interchangeable parts, this model is very attractive. All dimensions are available from 6 to 30m spans and with infinite length. High-quality structural aluminum frame buildings, customizable to your needs: window bays, sectional doors, mezzanines.

Structas foundations are efficient and economical. Depending on the subsoil of your area. Foundation options are; Prefab blocks, - Concrete plinths and Concrete slab.

Many options are available for your walls and roof cladding. insulated sandwich panels, various predefined thicknesses and types of insulation can be selected.

Applications

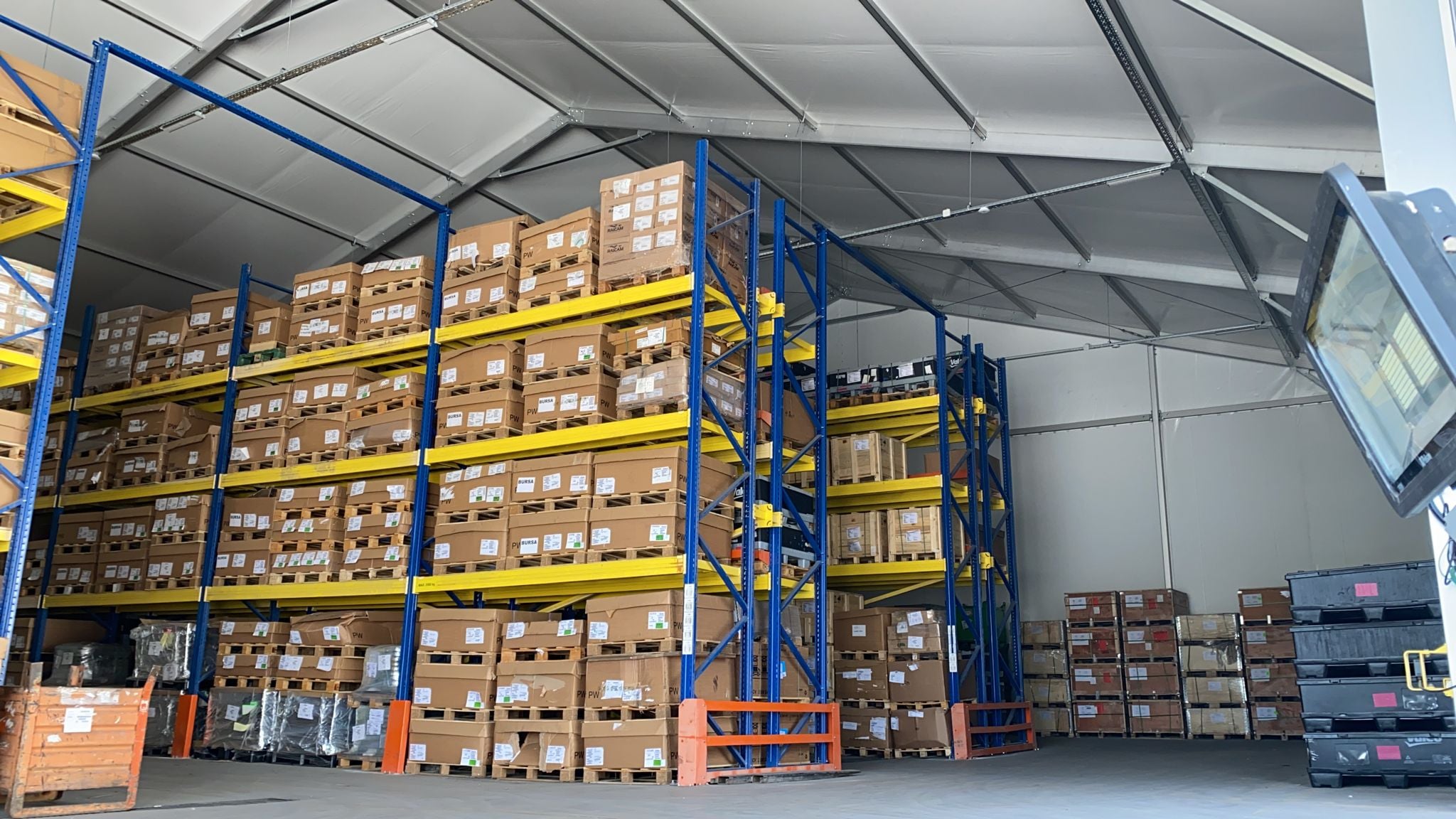

  • Storage of goods
  • Workshop and assembly
  • Exhibitions and outlet sales
  • Sales offices
  • Production and manufacturing
  • Temporary airport terminals
  • Livestock Structures



Technical Details
DOWNLOAD BROCHURE
Side Height 3m, 4m, 5m, 6m
Width 10m, 15m, 20m, 25m, 30m
Lenght 5m+
Roof PVC membrane (translucent or opaque)
Side Walls Options PVC membrane, trapezoidal sheet, sandwich panel
Snow Load 75 kg/m2
Wind Load  120 km/h
